AN INNOVATIVE SOLUTION, DELIVERED THROUGH THE BIT.
The Piercepoint TTB Plug is the only cementing-wedging plug of its kind to deploy directly through the core bit, with no drill rod removal required – avoiding the time, money and issues involved with pulling rods and deploying through a shoe.
Save Time
Setting the TTB Plug down hole without having to pull and re-enter the drill string should reduce field operations time by over 60%.
Save Money
By spending less time on field activities and more time on coring, the TTB Plug can save drillers and their clients thousands of dollars.
Avoid Issues
Reduced drill rod handling means doing more to protect equipment from damage and premature wear, as well as the safety of your crew.
One Solution.
Eliminating unnecessary drill rod removal, the Piercepoint TTB Plug can be configured, loaded and deployed in a fraction of the time, at a fraction of the cost, right through the inner tube. When compared to our competitors’ plugs, there is simply no better solution available today. Got your attention?
One Solution.
Eliminating unnecessary drill rod removal, the Piercepoint TTB Plug can be configured, loaded and deployed in a fraction of the time, at a fraction of the cost, right through the inner tube. When compared to our competitors’ plugs, there is simply no better solution available today. Got your attention?
Four Easy Steps.

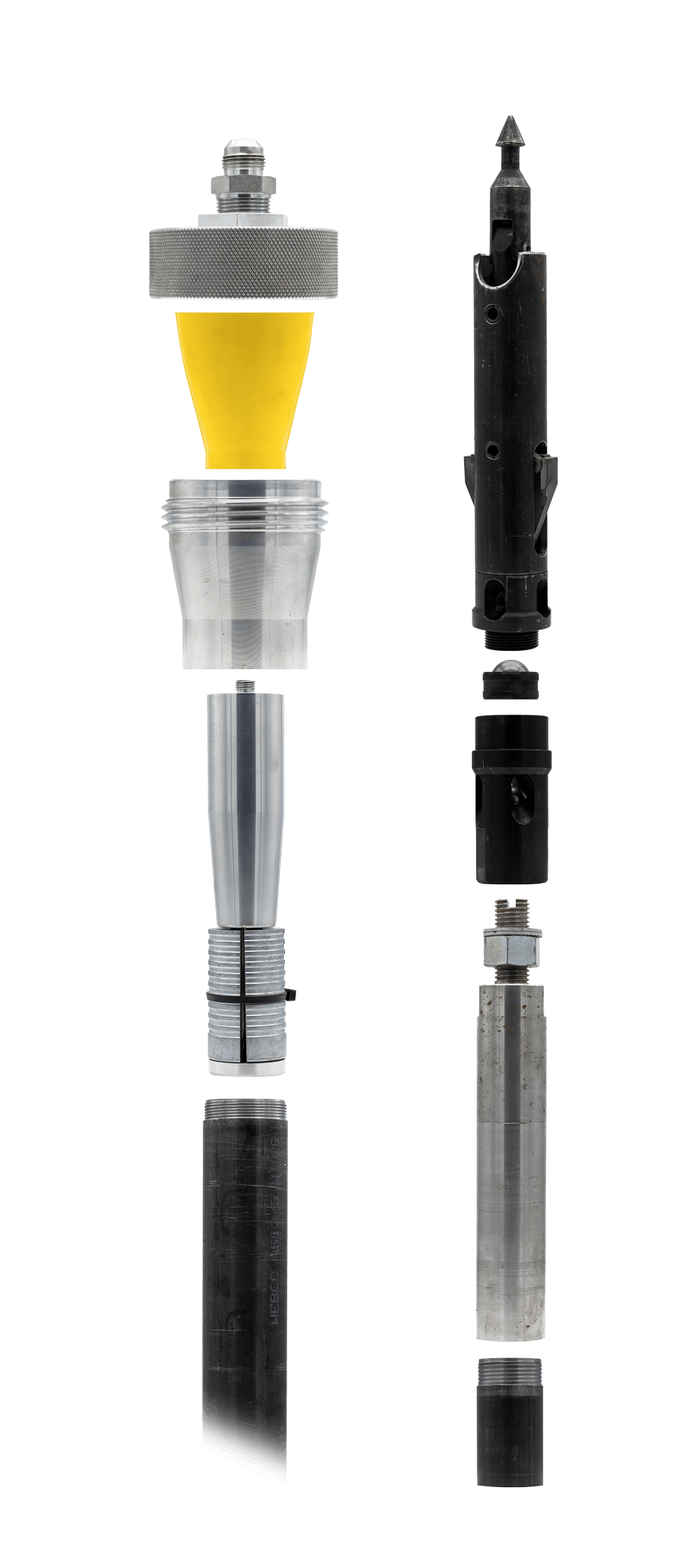

After pulling the inner tube assembly out of the drill hole (1), the loading chamber is attached and low water pressure is used to seat the plug (2). The lower latch body and adjustable tube adapter are threaded to the back end, a smooth lifter case is installed, and the loaded plug is lowered back into the hole (3). Once deployed, the spring-loaded feet wedge between the plug’s tapered body and the hole, while the yellow foam seal expands to ready the hole for cementing and/or wedging (4).
